The integrity of visual data is paramount in the realm of microscoping analysis. In this field, a challenge is managing the vibrations of an environment.

Vibrations can compromise the accuracy and clarity of microscopic images. This is why you should think carefully about what sort of anti-vibration table for microscopes would suit your project best.

This article will help you understand the properties of an effective anti-vibration table and how it reduces vibrations. These properties include vibration management, anti-vibration and vibration isolation. By considering these properties, you can select the best table for you.

Understanding Vibration Management in Microscopy

Microscopic analysis often demands sub-micron level precision. This is why vibration management is a critical factor in microscopy.

Even the slightest vibration can lead to blurred images or data inaccuracies. Laboratories and research facilities must prioritize anti-vibration measures to ensure reliable and repeatable results.

The Role of An Anti-Vibration Table for Microscopes

Anti-vibration tables are specifically designed to reduce vibrations and isolate sensitive equipment, like microscopes, from external disturbances. These tables employ various technologies to dampen vibrations from the environment, including mechanical and air-based systems. The core objective of an anti-vibration table is to provide a stable platform, thereby enhancing the microscope’s performance.

Factors to Consider When Choosing an Anti-Vibration Table

1. Type of Microscopy

Different microscopy techniques have varying sensitivity to vibrations. For example, electron microscopes require a higher degree of vibration isolation compared to light microscopes. Understanding the specific requirements of your microscopy technique is essential in selecting the appropriate anti-vibration table.

2. Vibration Isolation Technology

Vibration isolation technologies include simple elastomeric mounts, pneumatic systems (either passive or self-leveling), negative-stiffness isolators, and active-electronic systems. Rubber-based or air-based systems rely on mechanical means, such as springs and dampening materials, to reduce vibrations. Active-electronic systems use sensors, actuators, and feedback controls to cancel out vibrations.

3. Load Capacity

The anti-vibration table must support the weight of the microscope and any additional accessories. Overloading a table can compromise its anti-vibration capabilities. Ensure that the table’s load capacity exceeds the total weight of your equipment.

4. Environmental Factors

Consider the environmental factors of your laboratory. If the location is prone to significant external vibrations, a more robust vibration isolation system might be necessary. Examples of these vibrations could be from heavy machinery or foot traffic.

5. Ergonomics and Usability

The design of the anti-vibration table should facilitate comfortable and efficient use of the microscope. Adjustable height and ample workspace are important ergonomic considerations.

Best Practices for Maximizing Vibration Isolation

1. Proper Installation and Calibration

Proper installation and calibration of the anti-vibration table are critical. Incorrect setup can negate the benefits of even the most advanced systems.

2. Regular Maintenance

Routine maintenance of the anti-vibration table ensures its longevity and effectiveness. This includes checking and adjusting isolation systems and inspecting for any wear and tear.

3. Combining with Additional Vibration Management Strategies

For optimal results, combine the anti-vibration table with other vibration management strategies. You can do this by using vibration-dampening mats or placing the microscope in a low-traffic area.

Kinetic Systems Can Help You Find The Perfect Anti-Vibration Table For Microscopes

Many different types of anti-vibration tables for microscopes are available for you to choose from. The type you select will affect the quality of your microscoping analysis.

You can reduce vibrations and enhance the precision of your observations by considering your:

  • Type of microscopy
  • Isolation technology
  • Load capacity
  • Environmental factors
  • Egonomics.

Remember, effective vibration management in microscopy is not solely about the equipment. You also need to consider how it is implemented and maintained.

At Kinetic Systems, we understand the isolation challenges faced in the microscopy industry. Our extensive range of products is designed to meet your specific needs. This includes our active-air workstations and accessories such as plexiglass enclosures, faraday cages, overhead shelves, and retractable casters. Whether you require standard or custom-designed solutions, our commitment to solving your vibration control situations is unwavering.

Embark on your journey towards enhancing microscopic analysis with Kinetic Systems. Explore our products and discover how our advanced vibration control solutions can transform your laboratory’s performance.

For any inquiries or to discuss more about our anti-vibration tables for microscopes, please contact us. Let us help you achieve unparalleled precision in your microscopic endeavors.

In the precision-demanding realm of analytical balances, the significance of an optimal work environment cannot be overstated. Vibration, an often-overlooked factor, can substantially affect the accuracy and reliability of your measurements. To reduce vibration, you need an anti-vibration table for analytical balance.

Recognizing this, Kinetic Systems offers a comprehensive range of anti-vibration tables designed to meet varying requirements of load capacity, natural frequencies, and isolation performance. This article delves into the selection process of these vital components, focusing on Kinetic Systems’ offerings, like the 9100 Series High-Performance Workstations, the 1200 Series Heavy Duty Workstations, and the ELpF lightweight benchtop vibration isolation system.

What Can Affect Analytical Balances?

Analytical balances are extremely useful for intrinsically measuring the weight of samples. As they are very sensitive, it is important that they are calibrated frequently to provide accurate measurements. Failing to do this could compromise the validity of its results.

Some of the factors that could affect an analytical balance include:

  1. Increasing or decreasing the temperature of the sample and the room
  2. Altering the sample with chemicals
  3. Using the analytical balance near a magnet
  4. Having a messy work area that could put the analytical balance in contact with other materials.

Vibrations and Analytical Balances

If you want to preserve the accuracy of your measurements, you need to be aware that analytical balances could produce incorrect results due to any nearby vibrations.

Wherever you use an analytical balance, there is going to be nearby equipment that could produce a vibration that could have an effect on your sample. A vibration could alter the amount of sample through an accidental spill or cause the mechanisms of the analytical balance to malfunction.

To avoid inconsistent and inaccurate results, you can use an anti-vibration table for analytical balance. The table uses mounts and a robust stone surface to limit the amount of vibrations, or movement, that could reach the analytical balance.

Load Capacity Considerations

The foremost aspect in selecting an anti-vibration table is its load capacity. Kinetic Systems’ 9100 Series High-Performance Workstations cater to equipment weighing up to 1300 lbs, making them ideal for heavy analytical balances and associated apparatus (Kinetic Systems, n.d.-a). In scenarios demanding even higher load capacities, the 1200 Series Heavy Duty Workstations are capable of isolating loads up to 2800 lbs, thus offering a vibration-free environment for sensitive instruments.

Isolation Efficiency and Natural Frequencies

Another pivotal consideration is the system’s ability to isolate vibrations. Kinetic Systems’ ELpF lightweight benchtop vibration isolation system, for instance, is engineered for lighter loads (maximum capacity of 150 lbs). It excels in providing high isolation performance with low natural frequencies, making it particularly suited for lightweight, vibration-sensitive equipment like analytical balances.

Tailoring to Specific Equipment Needs

The selection of an anti-vibration table must be aligned with the specific requirements of the analytical balance or equipment in question. This entails a thorough evaluation of the balance’s weight, sensitivity, and operational environment. Each of Kinetic Systems’ solutions, from the robust 9100 and 1200 Series to the more specialized ELpF system, is designed to address distinct scenarios, ensuring optimal performance and reliability in vibration isolation.

Choosing your Anti-Vibration Table

The selection of an appropriate anti-vibration table is a critical step in ensuring the precision and accuracy of analytical balances. Kinetic Systems offers a range of solutions tailored to various load capacities and isolation requirements. By carefully considering factors, such as load capacity, natural frequencies, and the specific needs of the equipment, laboratories and research facilities can significantly enhance the performance and reliability of their sensitive instruments.

To learn more about anti-vibration tables and how they can maintain analytical balances, please contact the specialists at Kinetic Systems.

Atomic force microscopy (AFM) is a cornerstone in nanotechnology, enabling the imaging of materials at the nanometer scale. This precision tool, instrumental in applications ranging from data storage to lithography, is highly sensitive to mechanical vibrations. These vibrations, originating from the ground or nearby structures, necessitate effective vibration isolation solutions.

The Challenge of Low-Frequency Vibrations

One of the primary challenges in AFM is the isolation of low-frequency vibrations. Traditional methods, such as air tables, often need to improve in mitigating these vibrations effectively.  These vibrations, often below 100 Hz, are commonly encountered in laboratory environments. They originate from various sources, such as building movements, nearby traffic, and HVAC systems. The critical issue with low-frequency vibrations is their pervasive nature and ability to interfere with the nanometer-scale precision required in AFM.

Traditional vibration isolation methods, particularly air tables, have been a standard solution in many laboratory settings. Air tables operate by using a cushion of compressed air to dampen vibrations. While effectively isolating high-frequency vibrations, their performance can diminish at lower frequencies.

Contrary to popular belief, this inefficiency doesn’t stem from the inherent physical limitations of air as a damping medium. Although many air tables have a natural frequency typically above 2 Hz, higher precision units can effectively attenuate vibrations below this threshold.

In AFM, where imaging and measurements occur at the atomic level, even minuscule vibrations can lead to blurred images and inaccurate data. Low-frequency vibrations are particularly problematic because they can cause slow, continuous drifts in the position of the sample or the AFM tip. This drift can lead to a loss of resolution and clarity in the AFM images, making it challenging to discern the fine details of the sample’s surface.

Given the limitations of traditional systems in isolating low-frequency vibrations, there is a growing need for more advanced solutions in AFM applications.

Anti-Vibration Solutions for AFM

  1. Vibration Isolation Tables and Platforms: Kinetic Systems offers a range of solutions, including the 9100 Series Workstation for loads up to 1300 lbs and the 1200 Series for heavier loads up to 2800 lbs, catering to various laboratory needs. These systems provide a stable, vibration-free environment essential for high-quality, high-resolution AFM imaging.
  2. Benchtop Platforms: Kinetic Systems’ BenchMate series of tabletop vibration isolation platforms are ideally sized for many microscopes including AFMs.
  3. Vibration Enclosures: Alongside vibration isolation tables, we also offer solutions like the 2000 Series, which provides adjustable height for ergonomic comfort, and the compact 9200 Series, suitable for smaller setups and various applications, including AFM.

Selecting the Right Anti-Vibration Table from Kinetic Systems

The selection of an anti-vibration table for AFM should consider:

  • Frequency Range: The table should effectively isolate the specific frequency range of vibrations in the environment.
  • Load Capacity: It must support the AFM equipment’s weight while maintaining stability, with options like the 1200 and 9100 Series catering to different load requirements.
  • Performance at Low Frequencies: Given the challenge of low-frequency vibrations, systems like the MK52 Series offer specialized solutions.
  • Compatibility with AFM Setup: The table should fit the specific AFM equipment and the laboratory’s space constraints.

Looking for Anti-Vibration Tables?

Selecting an appropriate anti-vibration table is critical for the optimal functioning of AFM. With our diverse range of products and decades of expertise, Kinetic Systems provides viable solutions for various AFM applications. By carefully considering factors such as frequency range, load capacity, and compatibility with the AFM setup, researchers can significantly enhance the precision and quality of their AFM imaging.


References & Further Reading

  1. Zhai, S., Yu, P., Shi, J., Yang, T., Liu, L. (2021). Systematic Analyses of Passive Vibration Isolation System for Atomic Force Microscopes. In: Liu, XJ., Nie, Z., Yu, J., Xie, F., Song, R. (eds) Intelligent Robotics and Applications. ICIRA 2021. Lecture Notes in Computer Science(), vol 13014. Springer, Cham. https://doi.org/10.1007/978-3-030-89098-8_41

The pursuit of enhanced microscopy resolution often leads to the consideration of specialized equipment. Known for their vibration isolation capabilities, air tables are touted as essential for high-precision microscopy. However, recent findings suggest that their necessity and effectiveness might not be as straightforward as previously assumed. ¹

This article delves into the impact that a microscope air table has on microscope resolution, while examining their role and exploring alternatives for optimal imaging performance.

Air Tables: A Double-Edged Sword?

Air tables, or anti-vibration tables, are designed to mitigate vibrations that can blur microscopic images. Although they are effective in isolating vertical and horizontal vibrations, their utility in certain microscopy setups is under debate.

A study published in Microscopy Today showed that a microscope air table may not always be necessary for vibration isolation in electrophysiological equipment and microscopes. In fact, they can sometimes be a liability by picking up airborne vibrations, particularly in setups with solid enclosures like Faraday cages that are used in vision research. Kinetic Systems’ Faraday Cages are integrated with the workstation frame so airborne vibrations are not transmitted to the isolated work surface.

This surprising revelation points to the nuanced nature of vibration isolation in microscopy. Alongside this, it shows the need to evaluate the specific requirements of each setup. ¹

Alternatives to Air Tables

Given the potential limitations of air tables, researchers have sought alternative solutions. A promising approach is the use of damping tables made from materials like stainless steel. These can reduce resonances effectively. However, these too have limitations in overcoming sound-related disturbances.

The optimal placement of the microscope setup is a key factor in achieving high-quality imaging. ¹ For example, it could be a stable slab in a basement away from heavy vibrations that emerge from heating, ventilation, and air conditioning systems.

The Unparalleled Benefits of Air Tables in Certain Microscopy Settings

Despite the aforementioned limitations, it is crucial to acknowledge the scenarios where air tables prove to be indispensable in microscopy. In settings where vibrations are predominantly airborne, a microscope air table offers unparalleled benefits. Their design, featuring a working surface supported by a cushion of air, excels in isolating the microscope’s optical system from vibrations that are otherwise difficult to dampen.

When dealing with high-resolution imaging, where even the slightest vibration can distort the image, the role of air tables becomes irreplaceable. For instance, in electron microscopy and other applications requiring extreme precision, the isolation provided by air tables is essential to resolve fine specimen detail. These settings often involve delicate samples or require long exposure times, where any vibration can result in significant image degradation.

Furthermore, the adaptability of air tables to various laboratory environments adds to their appeal. With features like tapped holes for the easy integration of additional equipment, these tables offer a flexible solution that cater to the diverse needs of modern microscopy labs. They not only enhance image resolution and clarity, but also contribute to a more ergonomic and efficient workspace.

In summary, while it is important to consider the specific requirements and constraints of each microscopy setup, the value of a microscope air table in providing superior vibration isolation in certain scenarios cannot be overstated. Although other factors are important to consider, such as aperture wavelength and resolution, microscope air tables remain a cornerstone in the quest for achieving the highest resolution and clarity in microscopic imaging.

Does an Air Table Improve a Microscope’s Resolution?

As we, from Kinetic Systems, reflect on the role of a microscope air table for enhancing microscope resolution, it becomes clear that the answer is not black and white. Air tables can provide significant vibration isolation for the greatest resolving power, but their effectiveness can vary. This could be in relation to the specific experimental setup, environmental factors and the microscope’s numerical aperture.

For scientists seeking the utmost precision in their microscopic studies, exploring a combination of vibration isolation strategies, including the judicious use of air tables, damping tables, and strategic placement, is advisable.

Other factors that could change a microscope’s imaging properties, such as the wavelength of light, must also be considered. Shorter wavelengths yield higher resolution. So keep an eye on your imaging wavelength, as well as its airy disk. A diffraction pattern could lower the quality of your microscope’s images.

To learn more about state-of-the-art vibration control solutions, we invite you to look at Kinetic Systems’ Active Air Vibration Control Platforms, where cutting-edge technology meets scientific rigor.


References & Further Reading

  1. Moss A. Air Tables Are Not Always Needed for Vibration Isolation. Microscopy Today. 2018;7(4): Page 27. doi:10.1017/S1551929500064300

Vibration management is a critical consideration in laboratory environments where precision and accuracy are paramount. The integrity of experimental results often hinges on the stability of the testing apparatus, necessitating a diligent approach to mitigating vibrational interference. Laboratories with sensitive instruments, such as electron microscopes and analytical balances, must prioritize implementing effective vibration management strategies to ensure data integrity.

Strategies for Vibration Isolation

The cornerstone of vibration management within a lab context is employing specialized equipment to isolate and dampen vibrational forces. Vibration isolation tables and workstations provide a buffered platform for sensitive apparatus, absorbing extraneous vibrations before they reach critical components, and damping vibrations that may be triggered by events internal to the system. These anti-vibration tables are engineered to enhance the performance of various high-precision instruments, from analytical balances to advanced microscopes. They vary in application and functionality, but a few key examples from our product line include:

  1. High-Performance Workstations – 9100 Series: Suitable for many laboratory floor vibration control applications, supporting load ranges up to 1300 lbs.
  2. Heavy Duty Workstations – 1200 Series: Ideal for isolating heavier loads up to 2800 lbs, these workstations are versatile across various industries.
  3. Personal Workstations – 9200 Series: These compact workstations, supporting up to 440 lbs, are perfect for applications where floor space is limited.
  4. Variable Height Workstations – 2000 Series: Offering up to 12 inches of tabletop height adjustment, these are designed for user comfort, especially in scenarios requiring long hours or multiple shift use.
  5. MK Series: These workstations feature Minus K’s exclusive Negative Stiffness isolators designed for ultra-low frequency applications.

Each series is tailored to specific load capacities and applications, ensuring optimal vibration isolation for sensitive laboratory equipment.

Location Considerations for Equipment Placement

The strategic placement of work surfaces and lab equipment can significantly impact the efficacy of vibration management efforts. Locating sensitive equipment in inherently low-traffic areas or rooms with reinforced flooring will be an important first step toward avoiding unwanted vibrations. In some cases the site choice is as crucial as the vibration isolation equipment, with lower floors or basements often providing the most quiescent environments for sensitive measurements.

Training: Minimizing Human-Induced Vibrations

Another critical aspect of reducing vibration is the training of laboratory personnel. Proper handling and operational techniques are imperative to minimize human-induced vibrations. Personnel must be made aware of the sensitivity of the equipment and trained in the practices that help maintain a vibration-free environment.

In summary, effective vibration management is achieved through high-quality vibration isolation equipment, thoughtful laboratory design, and comprehensive training programs. By addressing these areas, laboratories can create environments conducive to high-precision work, ensuring that the integrity of experimental data is not compromised by vibrational artifacts.

Interested in Vibration Management?

At Kinetic Systems, we understand the crucial role of stability in your laboratory. Our range of vibration control solutions, including anti-vibration tables for analytical balances and microscopes, are engineered to meet the exact demands of your lab work.

Don’t compromise on precision. Choose Kinetic Systems for robust vibration management options tailored to your laboratory needs. Ensure the integrity of your research with our proven technology.

Contact us today for reliable, effective vibration isolation solutions. Your lab’s precision is our priority.

Choosing the right optical infrastructure—be it a breadboard or an optical table—is crucial for achieving precise scientific results. This article delves into the expanded technical differences between these two platforms, revealing their distinct features and versatile applications in scientific settings.

Material Composition and Structure:

At first glance, optical breadboards and tables may seem like similar staging grounds for experimentation. Yet a closer examination of their structure and material composition tells a unique story. Kinetic Systems offers a variety of breadboards tailored to diverse needs, including:

  • 5700 Series: Our premium 5700 Series breadboards include the 2-inch 5702, which forgoes a traditional honeycomb core for our patented, ultra-rigid VIBRALITE extruded aluminum core; and the 4-inch 5704 which mirrors the construction of our optical tables with a honeycomb core and SPILLPRUF layer. Like our optical tables, these breadboards feature 7-gage ferromagnetic stainless steel on both the top and bottom skins, ensuring maximum durability..
  • C-Series Composite Breadboards: Our C-Series breadboards offer a cost-effective solution with a special two-layer wood composite core and ferromagnetic stainless steel top and bottom skins, available with a stainless steel or customizable laminate finish.
  • S-Series Vibradamped High-Mass Tabletops: Not traditional breadboards, the S-Series plates provide a high-inertial-mass option to enhance the performance of pneumatic isolators.
  • 7000-Series Mounting Plates: The 7000-Series caters to setups where vibration is not a concern, offering undamped ½” anodized aluminum plates for precise fixturing at an economical price point.

Rigidity, Flatness, and Damping

Rigidity and flatness is where the divergence truly begins. While our breadboards are designed primarily for convenience and value, our optical tables are inherently more rigid due to their thickness, and they are manufactured to a more stringent flatness specification. In addition, our 5200 and 5300 series optical tables feature enhanced damping that is a critical requirement for many high-precision applications. Breadboards, because they are thinner, are not as rigid as optical tables.

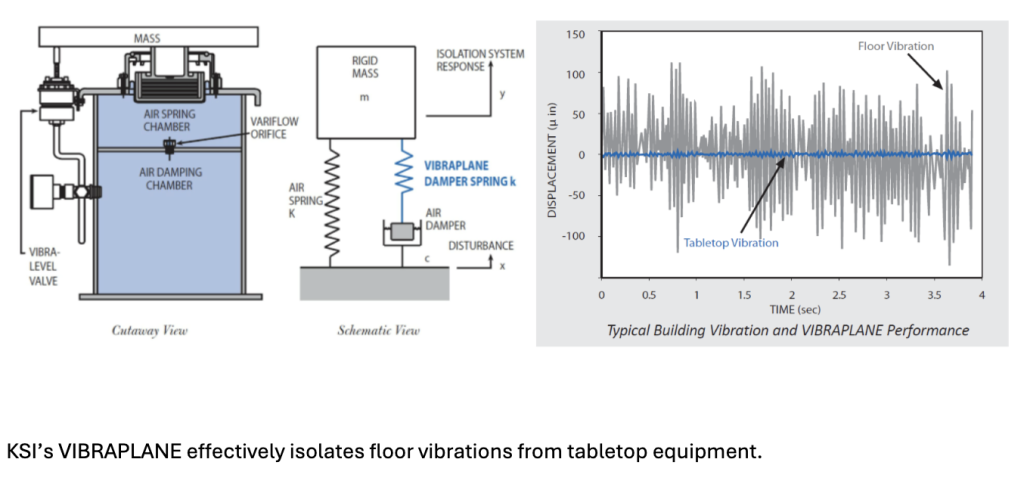

Importantly, all of our breadboards and optical tables can be matched with our VIBRAPLANE pneumatic vibration isolation supports, whether as an integrated workstation, matched with a set of our 1206 Series isolators, or placed on top of our 505 Series isolation mounts. Our 5704 with its SPILLPRUF layer and honeycomb core is a very high-performance breadboard, but when stiffness, flatness, or damping are top priorities, our Optical Tables provide unmatched performance, durability, and value.

Damping Matters

While our optical tables provide the ultimate performance in a scientific work surface in terms of rigidity, flatness, and damping, our breadboards and high-mass tabletops also include significant damping features. The 5700-series and C-series both feature broadband damping due to our proprietary epoxy formulation; additionally all of our standard C-series breadboards include a 2-layer core to improve damping performance. Meanwhile, our high-mass S-Series tabletops are bonded with a damping layer of 16-gage stainless steel on the underside for maximum damping plus the unmatched durability.

Spectrum of Applications

This diversity in design propels each platform into different areas of utility. The superior vibration damping of optical tables makes them indispensable for groundbreaking research. In contrast, the 5700 Series breadboards, with their ease of setup and adaptability, extend their utility to applications where a balance of stability and portability is key. The C-Series offers a cost-effective option with customizable finishes, perfect for many demanding applications where mounting holes are not needed.

Modularity and Customization

Customization is another arena where Kinetic Systems stands out. Our optical tables and breadboards can be made in any size up to 4’x8’ (breadboards) or 5’x20’ (optical tables), and in virtually any shape. In addition, our optical tables can be fitted with high-precision splice plates allowing almost unlimited extension in both width and length. Our optical tables can be matched with either active-air, passive-air, or rigid supports; and with optional leg braces and casters for added stability and mobility. We also offer shelving, enclosures, and many other commonly specified accessories for our optical tables. Our breadboards and high-mass tabletops, meanwhile, can be integrated with one of our workstations, which feature a wide number of configuration options and accessories such as shelving, enclosures, monitor and keyboard supports, faraday cages, and protective enclosures. with various accessories and add-ons, allowing for a tailored setup to meet the demands of complex experiments and high-precision instrumentation.

Kinetic Systems’ breadboards and optical tables are crafted for precision and versatility. Each product is designed with specific applications in mind, ensuring that every scientific endeavor is supported by the appropriate platform. We encourage you to visit our newly updated product pages for breadboards and optical tables, which showcase the breadth of our offerings and invite you to find the perfect fit for your research needs.

References:

Distasio, A. (2018). Do I Need an Optical Breadboard or Table. Optics Lab Tips and Tricks. [Date accessed: 19/10/23]. Available at: https://anthonydistasio.com/2018/12/05/do-i-need-an-optical-breadboard-or-table/
