505 Series Optical Table Legstands for Extremely Sensitive Applications
For severe vibration problems, or extremely sensitive applications, you’ll want to support your optical table with our 505 Series legstands which provide Active-Air isolation augmented by our advanced Kinematic Mod II horizontal isolation pistons for the ultimate in vibration control.

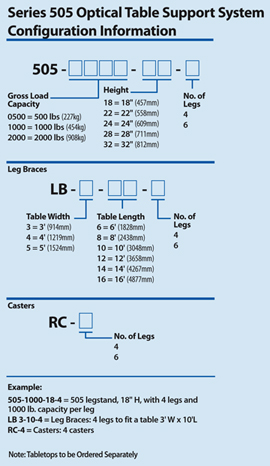

For severe vibration problems, or extremely sensitive applications, you’ll want to support your optical table with our 505 Series legstands which provide Active-Air isolation augmented by our advanced Kinematic Mod II horizontal isolation pistons for the ultimate in vibration control. Overall load capacity of the 505 legstand is dependent upon the number of isolators selected, typically four to six.
- Optional braces and casters
- Low vertical and horizontal natural frequencies
- Three load ranges
- Highly damped
- Fast settling time
Performance Data
Isolation Efficiency
| Vertical Natural Frequency | < 1.1 Hz |
| Isolation Efficiency @ 5 Hz | 90% |
| Isolation Efficiency @ 10 Hz | 98.5% |
| Horizontal Natural Frequency | < 1.9 Hz |
| Isolation Efficiency @ 5 Hz | 85% |
| Isolation Efficiency @ 10 Hz | 97% |
Load Range per Isolator
| 500 lbs @ 50 psi | |
| 1000 lbs @ 90 psi | |
| 2000 lbs @ 90 psi | |
| Pressure Range | 10 – 90 psi |
Finish
| Standard | Black Polyurethane |
| Class 10 | White Epoxy
Powder Coat |
Note:Typical performance efficiencies are for microdisturbances.
