High Performance Workstations – 9100 Series
The 9100 Series Vibration Isolation Workstation sets the industry standard for the vast majority of vibration control applications.
Designed to isolate sensitive instruments and experiments weighing up to 1300 lbs., the 9100 Series provides a comfortable work environment that can be customized to its specific use with a variety of worksurfaces and accessories. The 9100 provides both vertical and horizontal isolation. Supported by a VibraDamped steel frame with an Active-Air suspension, the worksurface will maintain a preset zero deflection level regardless of load addition or removal.
The 9100 Series is available for two load capacities, and is field convertible to desired capacity.
Typical Applications
Analytical Balances, Cell Injection, Confocal Microscopes, Patch Clamping, Optical Microscopes, Wafer Probing, Mask Aligning, Atomic Force Microscopes, Microscopes
Optional Accessories

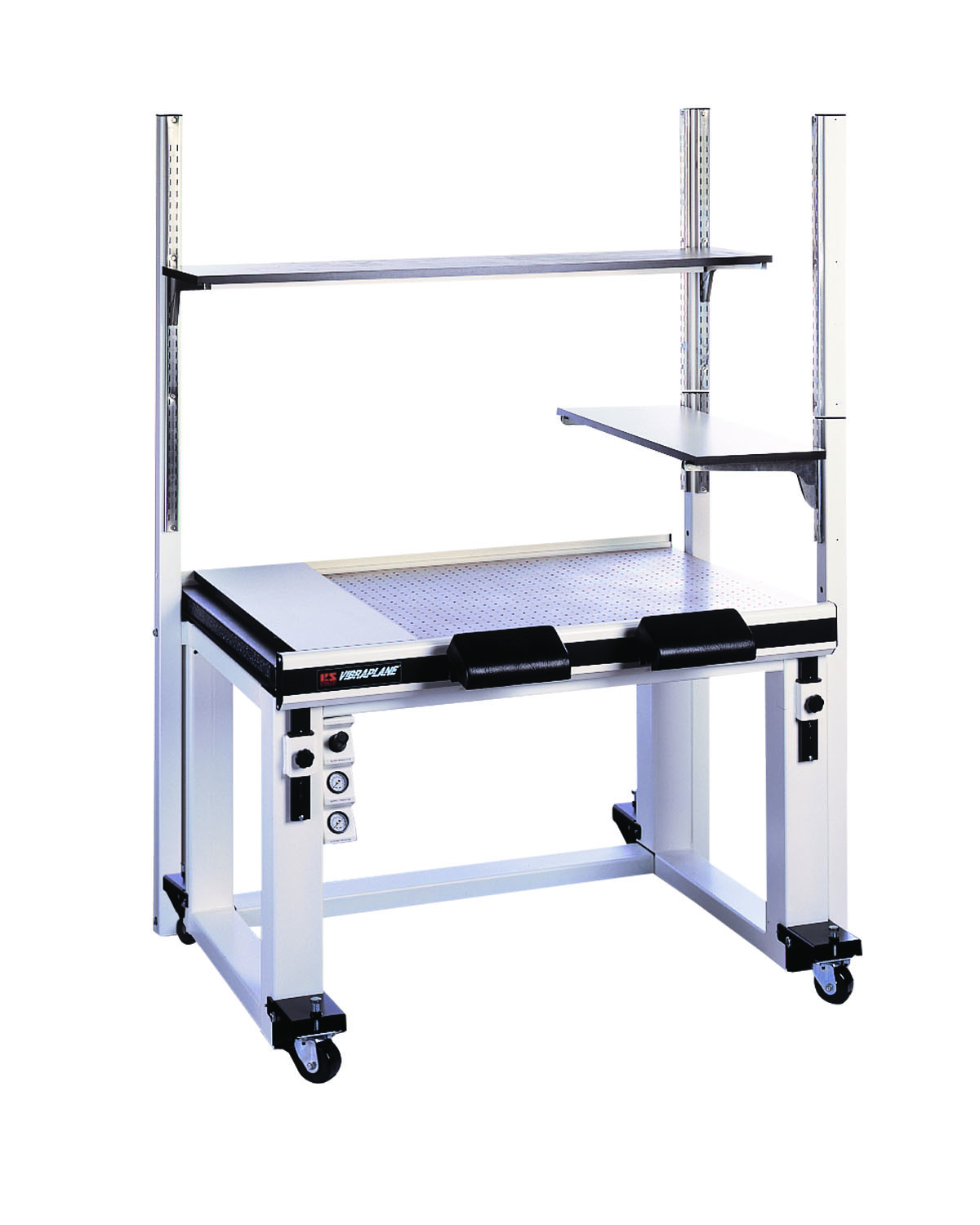

- Guard Rails – Front and Rear
- Side Guard Rails
- Padded Arm Rests
- Retractable Casters – Easily Move your Workstation in the Lab
- Faraday Cage
- Fixed Shelves – Standard and Custom Sizes
- Sliding Shelves – Gain More Tabletop Work Area
- Monitor Support – Offered for Both CRT and FPD
- Keyboard Shelf
- Overhead Rear Equipment Shelf
- Overhead Side Equipment Shelf
- Enclosures – Additional Protection for your Sensitive Equipment
- Portable Air Compressor
- Electrical Outlet Strip
- Custom Sizes
- Class 10 Cleanroom Compatible Finish

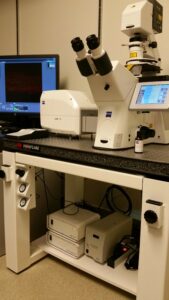

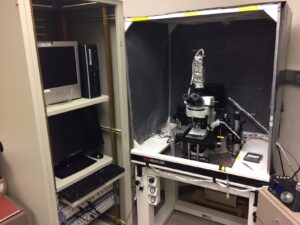

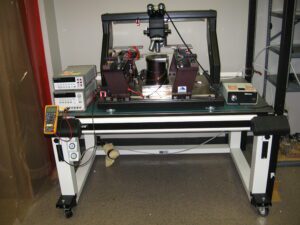

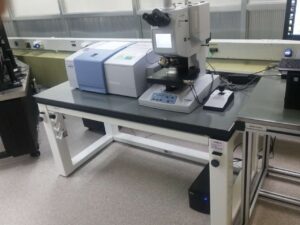

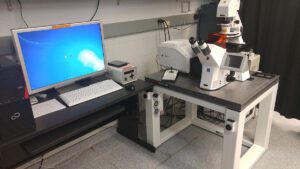

9100 In-Use Image Gallery

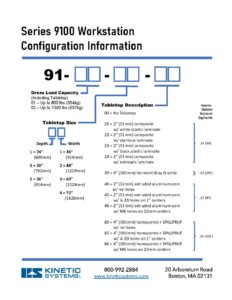

Tabletop Options
- Nominal damping
- Lightweight, flat, and rigid
- Very high natural frequency
- Corrosion resistant
- Custom cutouts available
- 2″ and 4″ thick SPILLPRUF
- Magnetic top layer
- English, Metric, and MaxxAlign – Mounting hole patterns available
- Enhanced damping
- White, black, antistatic, or stainless steel laminate
- High mass — large inertia
- Rigid low profile design — 1″
- Class 10 available
- Custom configurations available
- Corrosion resistant
- Highly damped composite layering
- Lightweight
- White, black, antistatic, or stainless steel laminate
- High natural frequency
- Rigid, 2″ thick
- Corrosion resistant
- Class 10 available
- Natural damping
- High natural frequency
- Flat
- Rigid
- Thermal stability
- 4″ thick
- High mass — large inertia
- Corrosion resistant
- Vertical vibration isolation
- Horizontal vibration isolation
- VibraDamped steel frame
- High performance Active-Air Suspension
- Maintains a preset zero deflection level (regardless of load addition or removal)
- Choice of 12 standard tabletops – custom tabletops also available
- Choose from 12 standard sizes – custom sizes also available
- Ergonomic styling
- Class 100 Cleanroom Compatible — Class 10 available
- Tabletop uplimit travel restraints
- Precise, repeatable leveling accuracy to 0.001″with high accuracy valve
Transmissibility
Standard Dimensions
| Performance Data
Min. Load @ 20 psi |
|
| Vertical Natural Frequency | 1.9 Hz |
| Isolation Efficiency @ 5 Hz | 70% |
| Isolation Efficiency @ 10 Hz | 90% |
| Horizontal Natural Frequency | 2.2 Hz |
| Isolation Efficiency @ 5 Hz | 64% |
| Isolation Efficiency @ 10 Hz | 90% |
| Maximum Load @ 80 psi | |
| Vertical Natural Frequency | 1.5 Hz |
| Isolation Efficiency @ 5 Hz | 85% |
| Isolation Efficiency @ 10 Hz | 97% |
| Horizontal Natural Frequency | 1.2 Hz |
| Isolation Efficiency @ 5 Hz | 91% |
| Isolation Efficiency @ 10 Hz | 97% |
| Gross Load Capacity @ 80 psi | |
| 9101 | 800 lbs. (363 Kg) |
| 9102 | 1300 lbs. (590Kg) |
| Finish | |
| Standard | Linear White Smooth
Polyurethane |
| Class 10 | White Epoxy
Powder Coat |
Note: Typical performance efficiencies are for microdisturbances
